Interventional & Delivery Systems
ARC Vascular – Vascular Catheter / Interventional Device
Red and Blue Ports

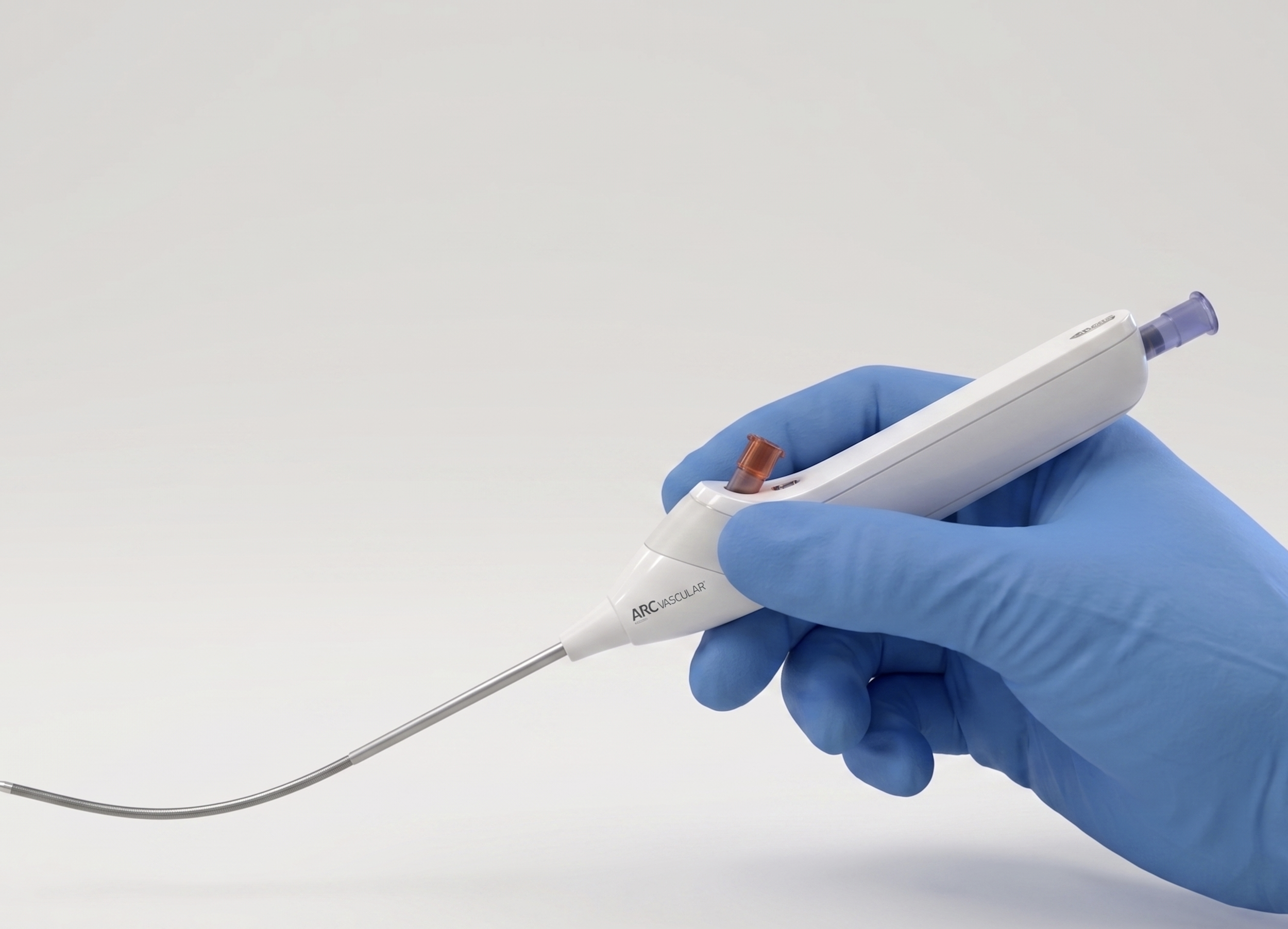

handheld position

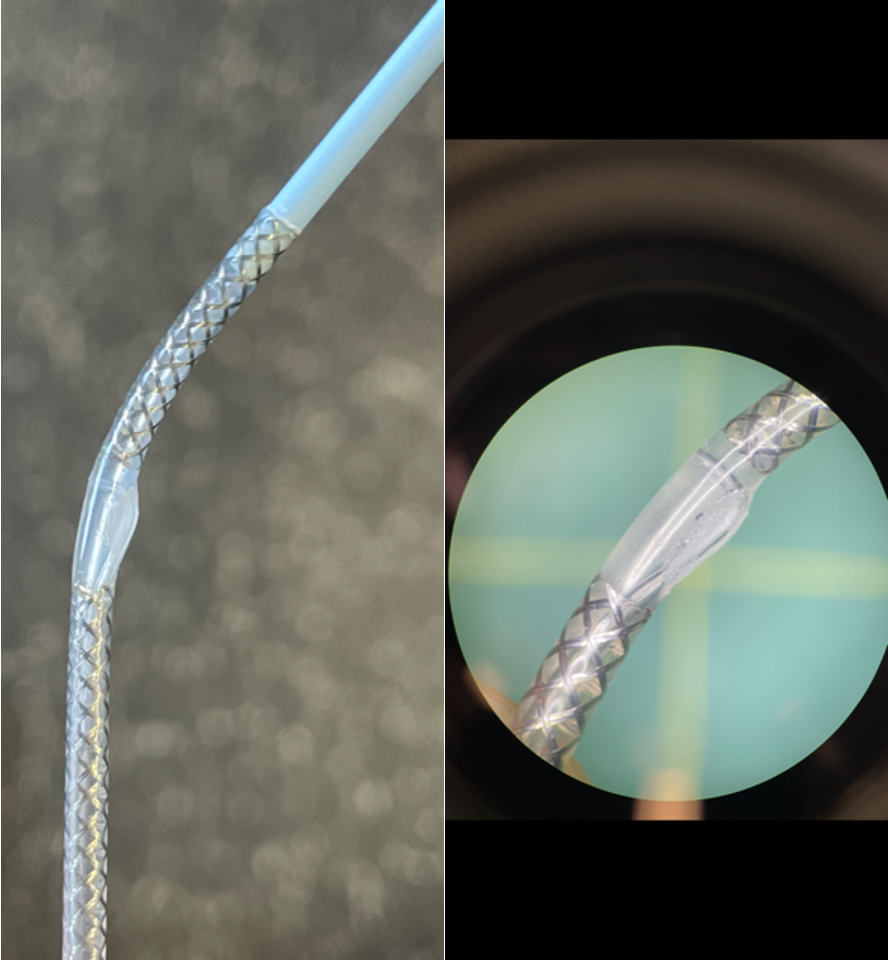

Shaft including molded flexible bend at 120°
ARC Vascular
The Design Challenge -
Treating multi-directional arterial blockages traditionally required making multiple, separate punctures in a patient's artery. This forced physicians into a redundant, dual-incision workflow that increased complication risks, prolonged patient recovery times, and drove up hospital costs.
The Design Solution -
The Antegrade Retrograde Converter (ARC) condenses this workflow into a single puncture by leveraging a custom Nitinol wire that loops 180 degrees inside the vessel. This innovation is housed in a simple clamshell handle designed to support multi-grip positions as physicians change directions mid-procedure. The tactile gray overmold reinforces grip and brand identity, the 30° angled red port ensures friction-free lumen entry, and a dedicated blue port provides seamless syringe access—elevating both simplicity and the end-user experience.

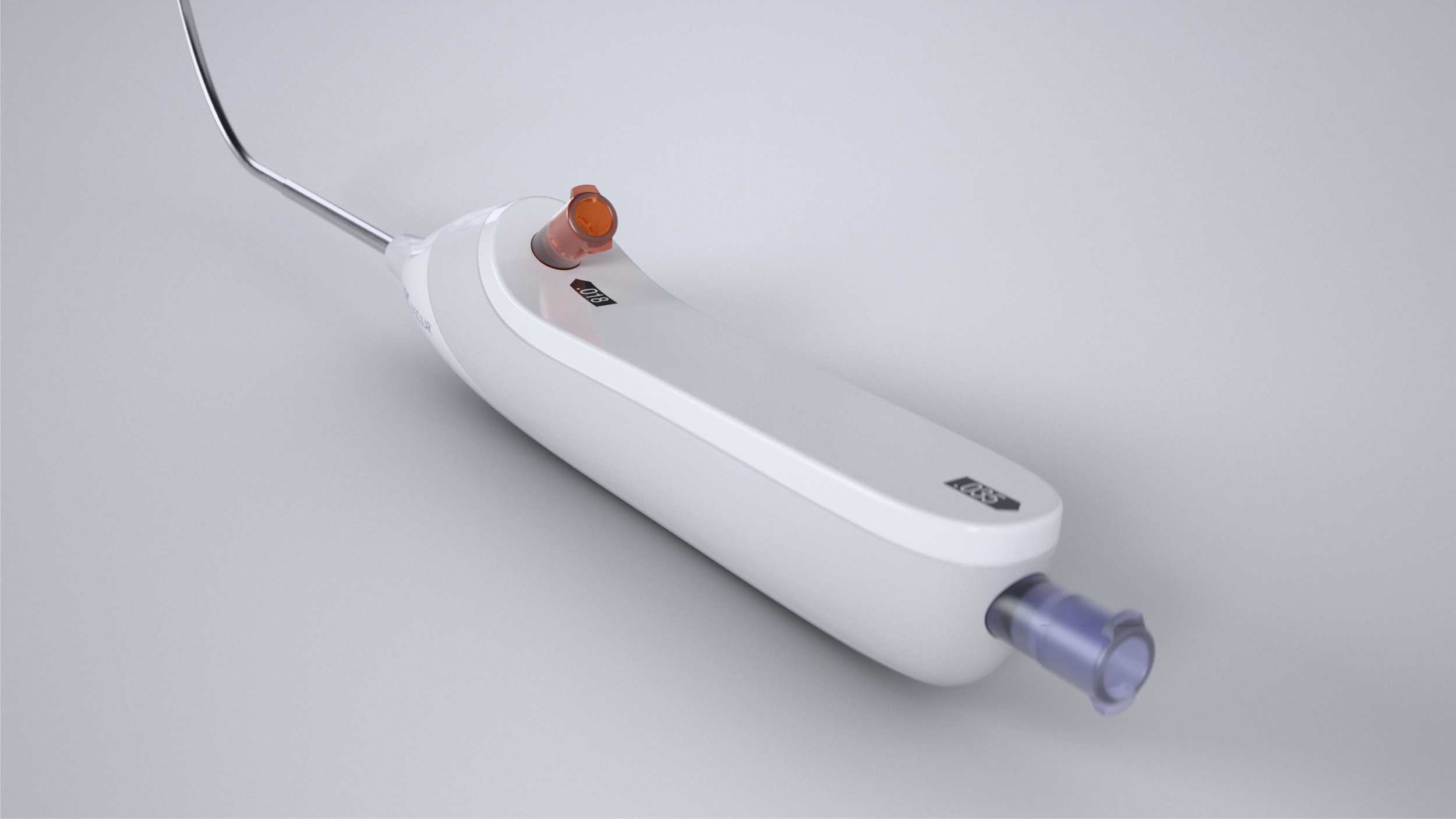

Red and Blue Ports
Turn Back Lumen (TBL) Red Port at 30° angle on top (.018 FR)
Straight Through Lumen (STL) exiting at Blue Port in rear (.035 FR)

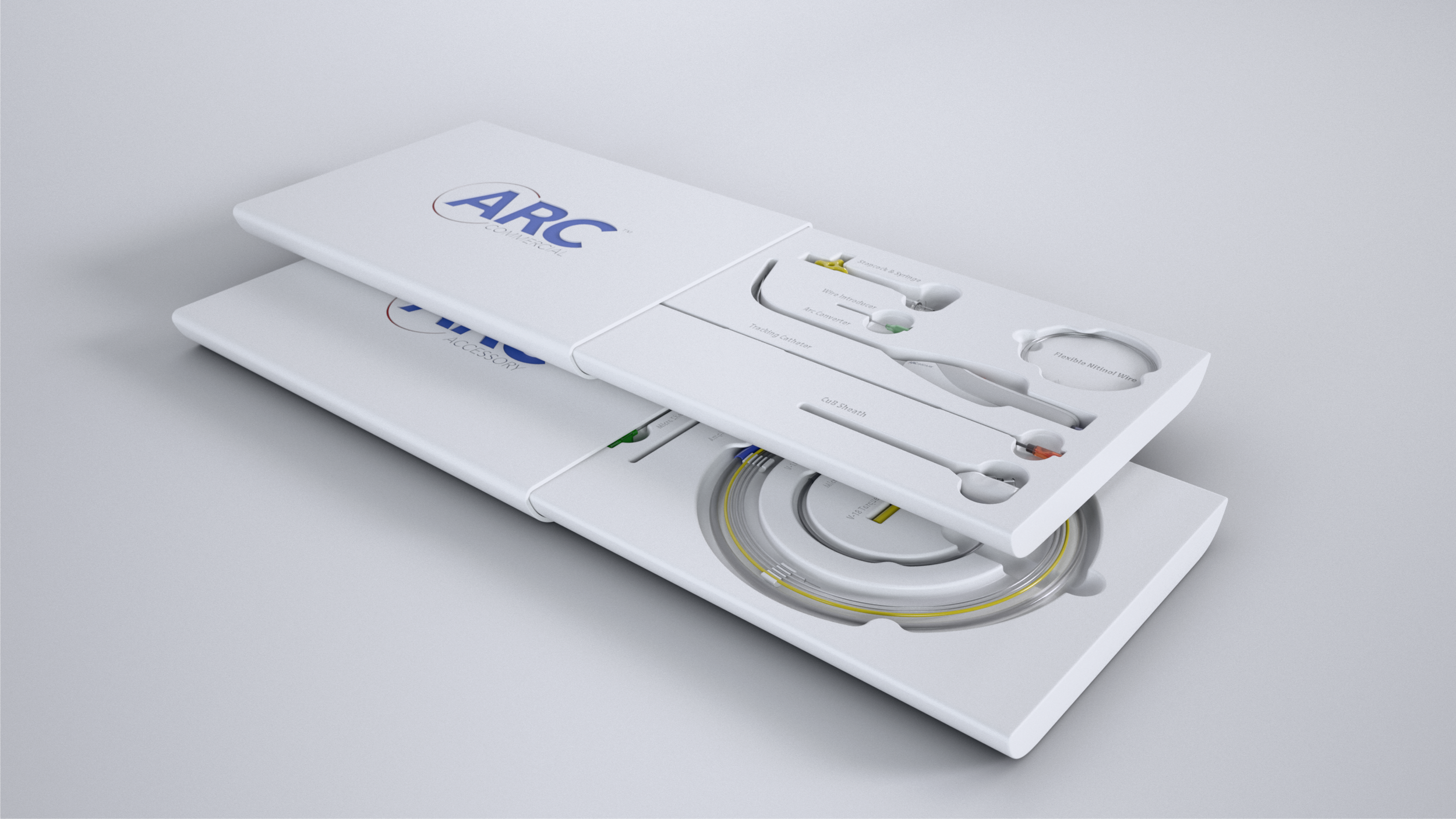

ARC Packaging Design
To support the FDA approval process, we developed a dual-packaging configuration designed to optimize clinical workflow, organization, and ease of use in the operating room.
The Commercial Package: Houses the primary system components, including the ARC Converter, Stopcock & Syringe, Flexible Nitinol Wire, Wire Introducer, Tracking Catheter, and CuB Sheath.
The Accessory Package: Organizes supplemental procedural tools, including the MicroSheath Introducer, Micro Access Needle, V-18 Torque, Amplatz Wire, V-18 Wire, and Micro Wire.

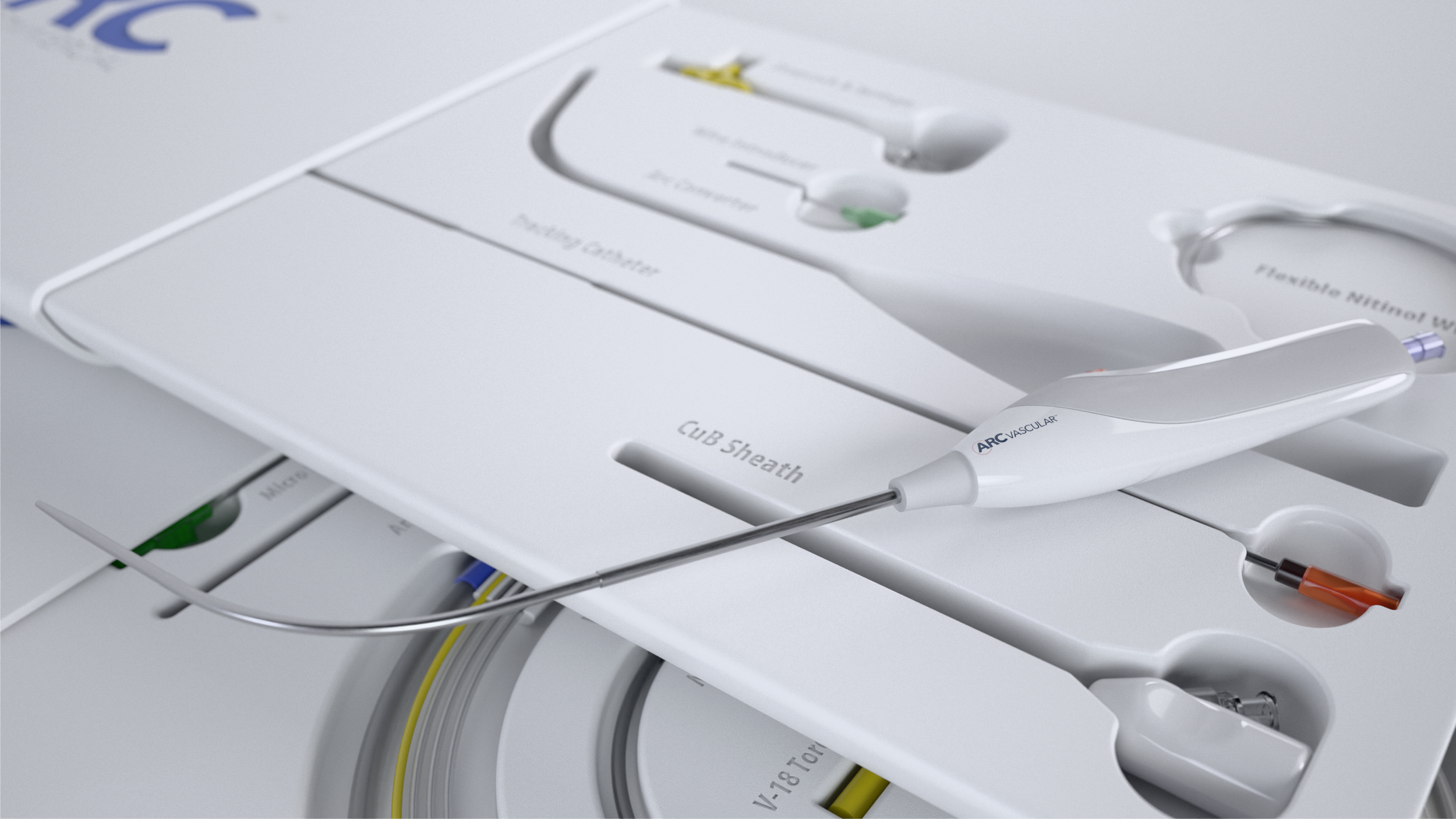

each instrument placed in its carefully designed recess

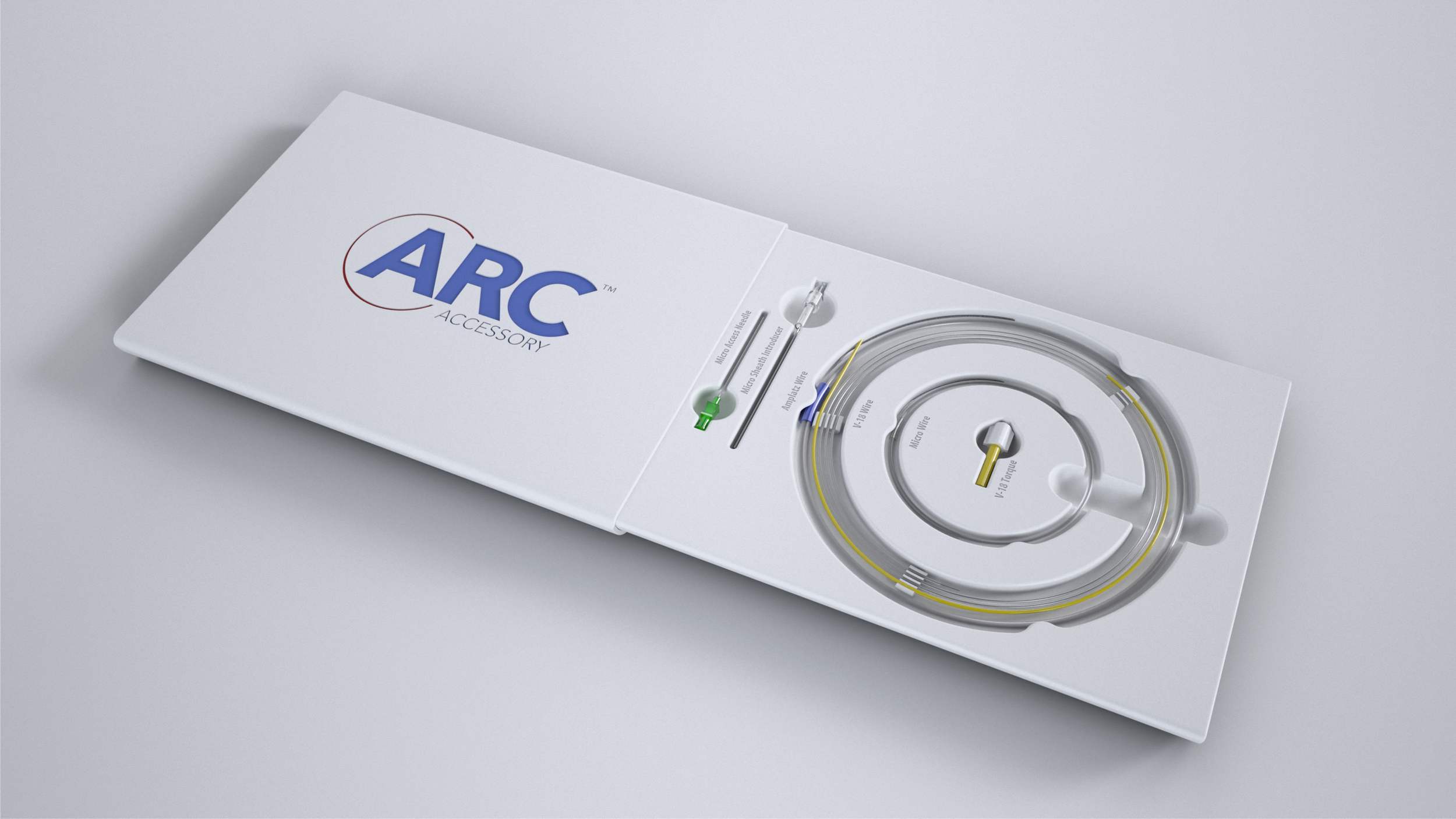

Accessory Packaging

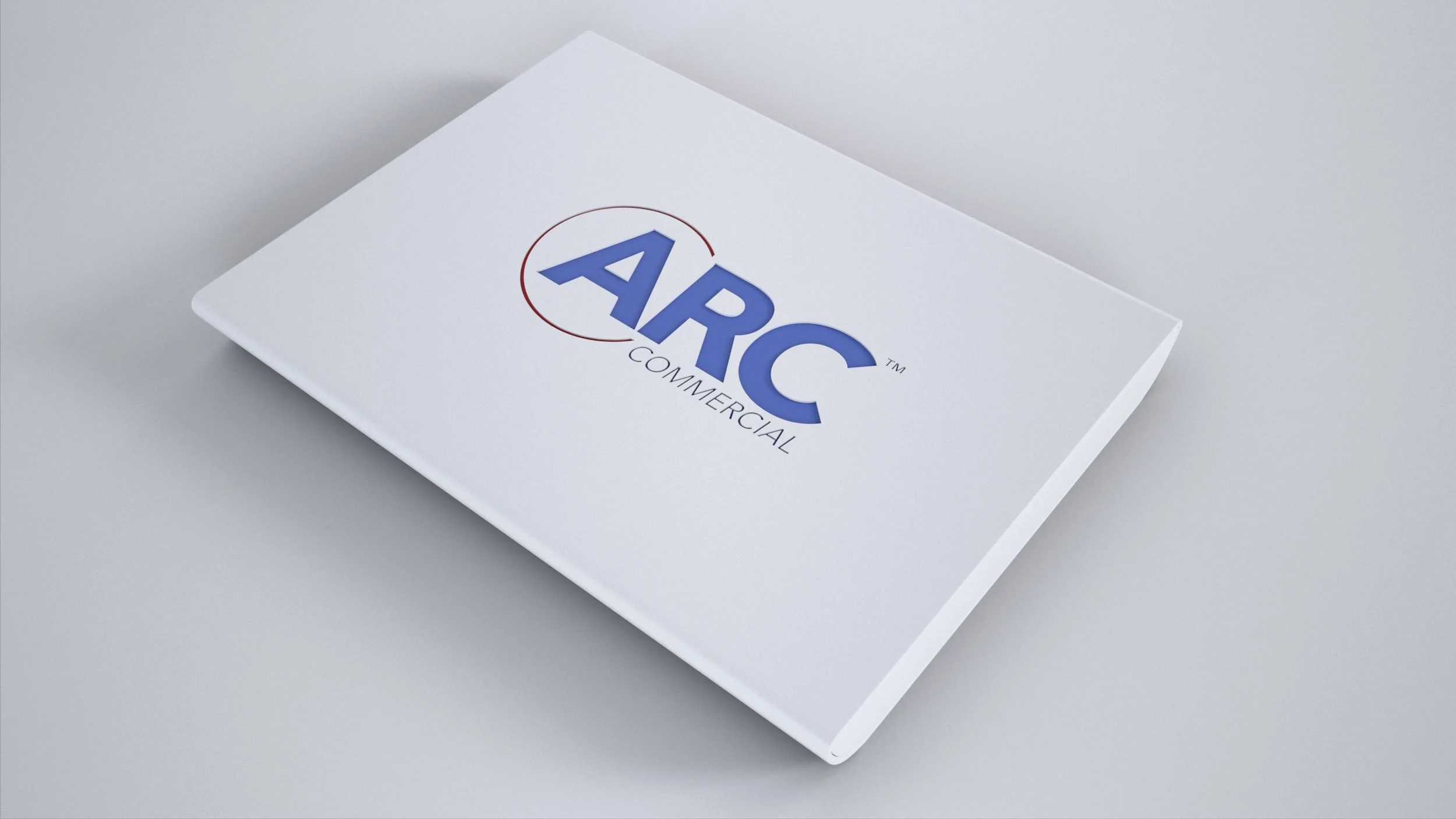

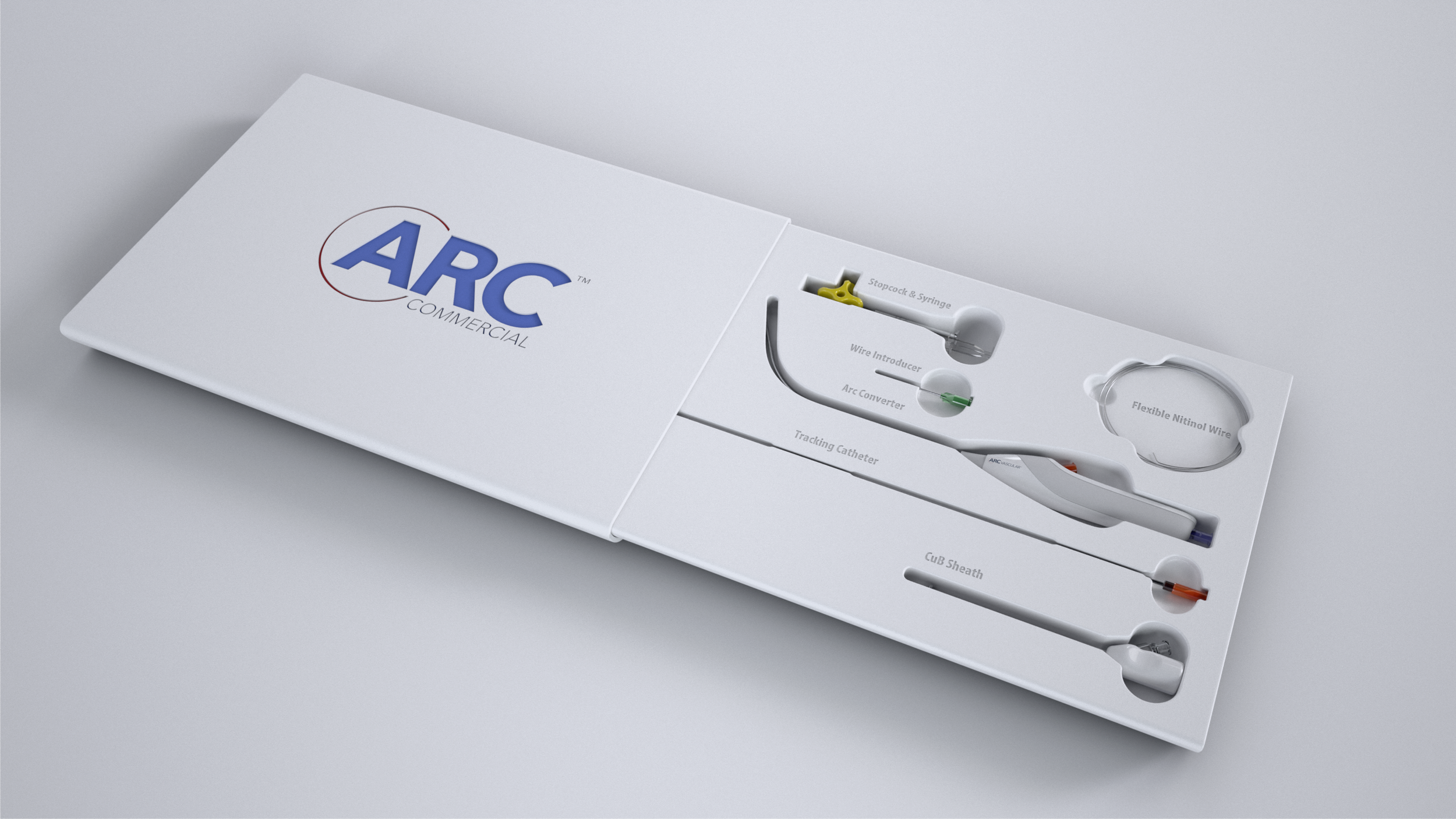

Commercial Packaging
